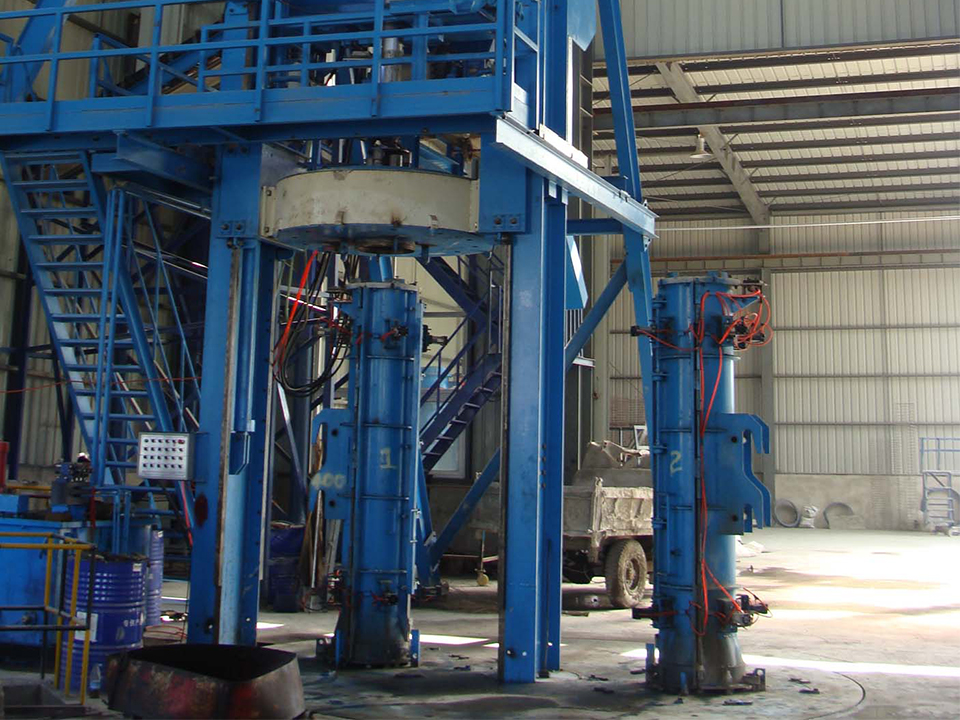

A vertical radial extrusion pipe making machine is a device used to make concrete pipes. It mainly extrude concrete materials into a tube through a vertically mounted radial extrusion forming head, and realizes the forming and reinforcement of the tube during the extrusion process.

Specifically, a vertical radial extrusion pipe making machine usually includes the following main components:

1. Frame and guide column:

The frame is the main structure of the equipment, on which the guide column is vertically fixed and connected, which is used to guide and support the movement of the slider.

2. Slider and power head:

The slider slides up and down on the guide column, and the power head rotation driver is installed on the slider to drive the forming head to rotate and extrude concrete.

3. Forming head:

The forming head is the core component, which shapes the concrete material into a tube through rotation and extrusion.

4. Lifting mechanism:

The lifting mechanism is used to control the lifting and lowering movement of the slider, thereby controlling the working range and height of the forming head.

5. Workbench and bottom tray:

The workbench is used to place the mold to be processed, and the bottom tray is placed in the through hole on the workbench to support the bottom of the pipe.

6. Multi-station design:

Some vertical radial extrusion pipe making machines also adopt multi-station design, such as annular worktable and multiple lower hoppers, which can realize continuous production of multiple stations and improve production efficiency.

The advantages of vertical radial extrusion pipe making machines include:

High degree of automation:

Through mechanization and automatic control, manual operation can be reduced, and production efficiency and product quality can be improved.

High production efficiency:

Multi-station design and continuous production mode can improve production efficiency and shorten production cycle.

Good product quality:

Radial extrusion molding technology can make the pipe high in density, good in strength and smooth in surface.

Strong adaptability:

Concrete pipes of different specifications and sizes can be produced.
